large company
high productivity
tools free
Stainless Steel
USER FRIENDLY
36 month warranty
IP66 sanitizing
integration
large company It meets the production needs of a large company with a high level of automation. Customer service on an international scale for technical support, spare parts, complete revisions, and support for the study of new packages or changes to existing machines. System for connection and monitoring of the machine via internet in a VPN protected network.
high productivity Designed for large productions.
tools free Quick in both management and format changes without the needs for tools and in its integration with other elements making up a packaging line.
Stainless Steel Made of stainless steel to resist the most difficult production environments and most intense stresses. Aluminium inserts with anti-corrosion and anti-wear hard anodizing (40 μm hard anodic oxidation).
USER FRIENDLY Easy to control thanks to the colour touch screen control panel, it is managed by a graphically intuitive HMI that is understandable to all operator levels. Developed in Windows CE on SIEMENS SIMATIC systems.
36 month warranty It complies with the highest quality standards both in terms of structure and parts so it has a standard 36 month warranty.
IP66 sanitizing Designed to sustain intense wash cycles and frequent sanitizing with IP66 protection rating. Suitable for all production environments and all sanitizing treatments.
integration It expresses its potential, interacting with other elements (automatic dosers, multi-head scales, automatic loading systems)
types of packages
SEALING ONLY
skin
SKINVER PACKUNG
map
SCHUTZGAS VERPACKUNG
products that can be packaged
FRESH MEATS
COLD MEATS
SLICED
FISH
CHEESE AND DAIRY PRODUCTS
FERTIGGERICHTE
plats cuisinés
ready meals
FRUITS AND VEGETABLES
FRESH NOODLES
BAKING AND CONFECTIONERY PRODUCTS
DRY FRUITS AND SNACKS

Panorama

Great performances

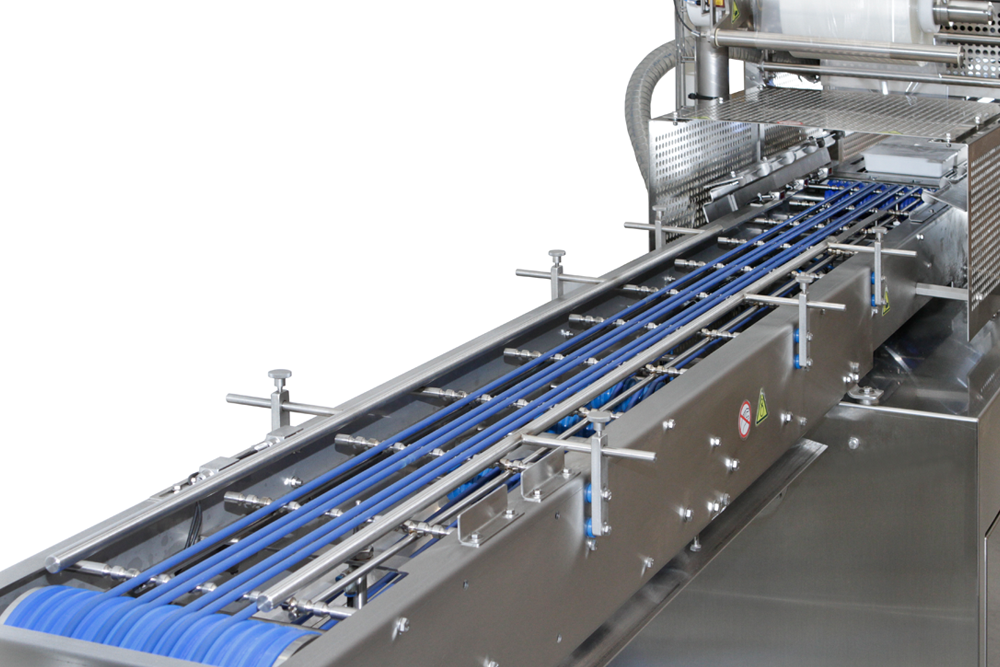

The automatic traysealing machine PANORAMA was conceived for large productions; it can be integrated in complete lines so it expresses its potentialities also in the interaction with other elements (automatic dosing system, multihead, systems of automatic loading). It meets the production needs of a large company with high automation level. Stainless steel structure aisi 304, electrical motor and infeed and outfeed belt with tracks and “continuous” run. Pushers with electrical and mechanical movement for single way layout of trays in the mould Pneumatic lifting system of mould and mechanical or electrical levers. Control and management with 12” touch screen control panel. Usage applications: sealing, skin with or without edge and MAP.

Gallery

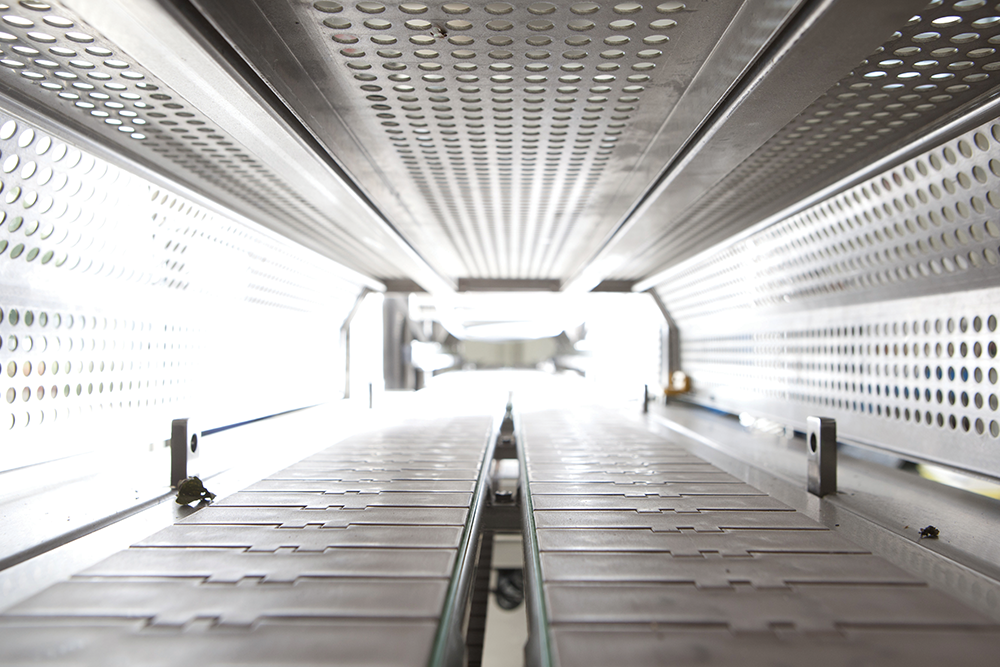

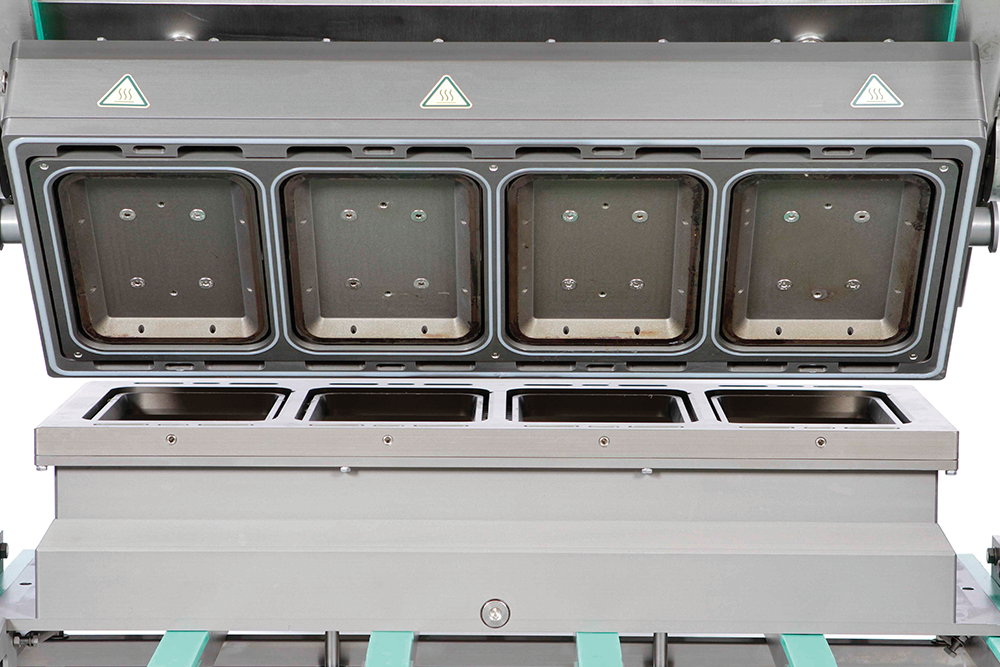

Mould and formats

Technical characteristics

Machine dimensions  4940x910x2250
Accumulation belt 1800 mm
Loading area from 1500 - 4000 mm with step of 500 mm
Loading area height 960 (± 50 mm)
Machine weight (vacuum pump excluded) approx. 1500 Kg
Control panel height 1500 mm
Used materials STAINLESS steel Aisi 304, Anodized aluminium
Sealing  area (max. package) 662x332 mm
Tray max. height   140 mm with 1-cavity  mould
100 mm with multiple cavities mould
Sealing  film reel max. diameter 400 mm
Sealing  film core diameter 3" (70 ÷76 mm)
Sealing  film max. width 400 mm
Installed power (pumps excluded)) 6 kW - 440 V - 50/60 Hz - 3P+N+GND
Protection degree IP / NEMA IP 66 / NEMA 4
Pneumatic feeding 530 Nl/min
Only sealing  production capacity up to 18 cycles / min.
Map production capacity up to 12 cycles / min.
Skin production capacity up to 8 cycles / min.
Package production capacity (example) more than 100 / min.
Electrical components   Siemens, Toshiba, Minimotor, ABB, Sick, Phoenix Contact
Pneumatic components Festo, Parker
Vacuum system components Omal, Valvaut, Maros Engineering, Trelleborg
