The VKF 50 is the thermoformer designed for those who want to evolve their packaging towards higher industrial standards without sacrificing agility.
Thanks to its ability to adapt to extremely varied production batches, this machine transforms rigid and flexible films into packages with perfect geometry, ensuring a hermetic protection and an aesthetic presentation that enhances every detail of the product.
It's the strategic choice For those looking constant reliability And a drastic reduction in downtime
The VKF50 is the perfect meeting point between the convenience of the compact range and the performance of large industry. Designed for those who need advanced operational flexibility, it allows you to manage complex formats and different materials with simplicity
Designed to withstand intense production cycles without loss of performance.
Designed to handle different formats with extreme agility, allowing quick and smooth production changes.
A versatile solution created to be easily integrated into existing production lines, optimizing the overall workflow.
An advanced engineering that guarantees a higher cycle speed, optimizing hourly productivity without a drop in quality.
Prestazioni misurabili e affidabilità costante.
Consulta i dati tecnici o scarica la scheda completa per scoprire la tecnologia che muove la tua produzione
Length|From 4185 to 7185 with extension of 600 Width|1190 Height|1970 (± 50) Load area|750 ÷ 3600 Load area height|950 (± 50) Total weight (vacuum pump excluded) |1000 ÷ 1500 kg Control panel height|1500 (± 50) Lower standard film width|322 - 342 - 362 - 382 - 422 - 442 - 462 - 482 - 522 Max step|480 Forming depth|80/120/150 Coil inner diameter|3” (70 ÷76 mm) Lower reel diameter|400 Top reel diameter|400 Material|Aisi 304 stainless steel Control/Command System|"Touch 7" standard - opt.Touch 12" Control/Command Interface|HMI Simatic Siemens - Windows CE Power system (Drive) |Brushless motor System installed (pump excluded) |13-20 kW - 440 V - 50/60 Hz - 3P+N+GND IP/NEMA|IP 66/NEMA 4 protection level Pneumatic feed|1250 Nl/min Electrical Components|Siemens, Toshiba, ABB, Sick, Phoenix Contact Mechanical Components|Rossi Gear Motors, Minimotor, Siemens, Iwis, SKF, Igus Pneumatic components | Festo, Parker Vacuum system components|OMAL, Valvaut, Maros Engineering, Trelleborg Production capacity|up to 14 cycles/min Applications|Welding, Skin, MAP, Vacuum Bottom film for rigid packaging|PET - PVC - PS - PP Bottom film for flexible packaging|PA/PE Superior film for flexible packaging|PA/PE - PP - Paper - Alu - Tyvec - Skin
Scegli il metodo di conservazione ideale per valorizzare i tuoi standard produttivi e garantire unafreschezza duratura.
Map
Sealing

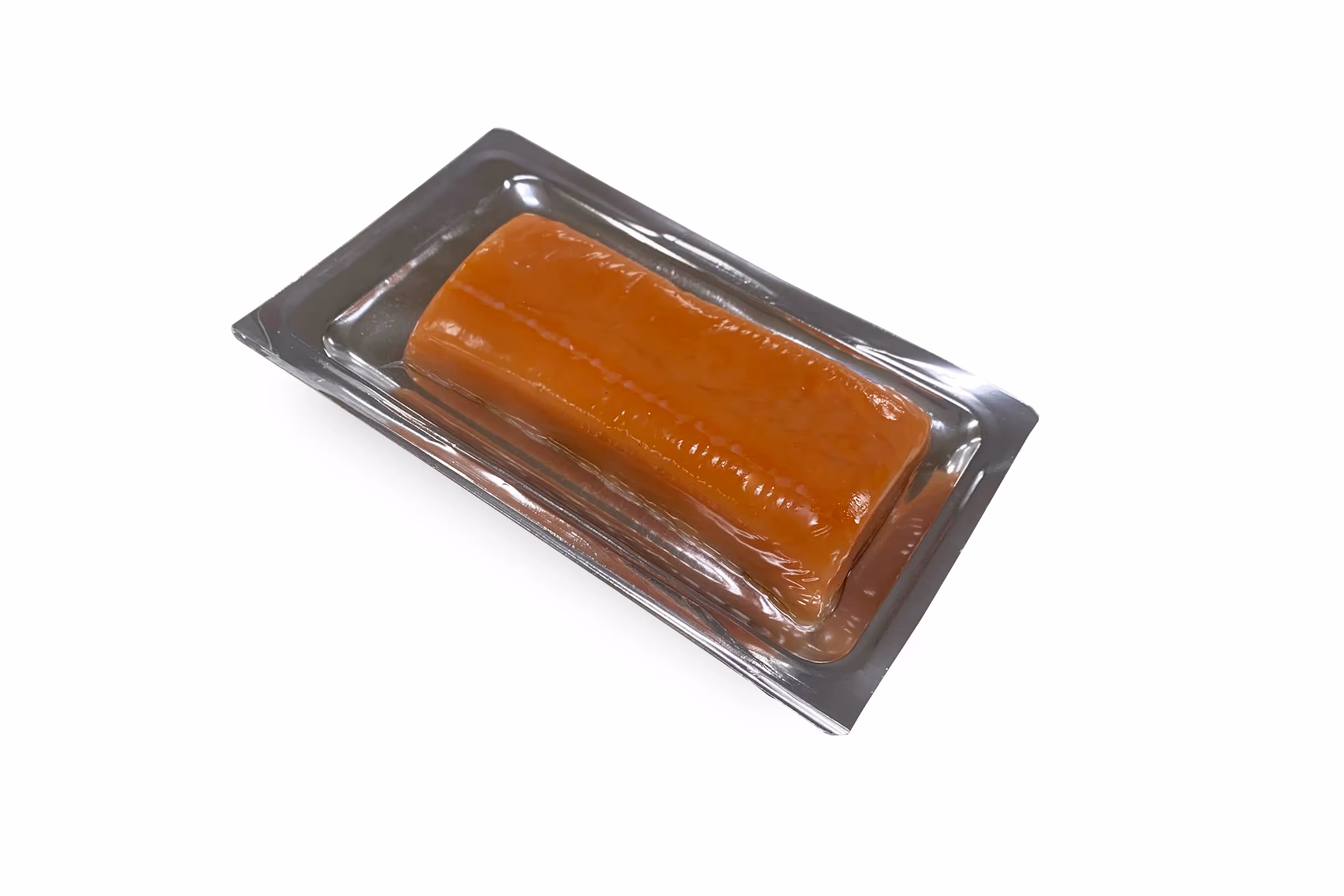

Skin
Vacuum

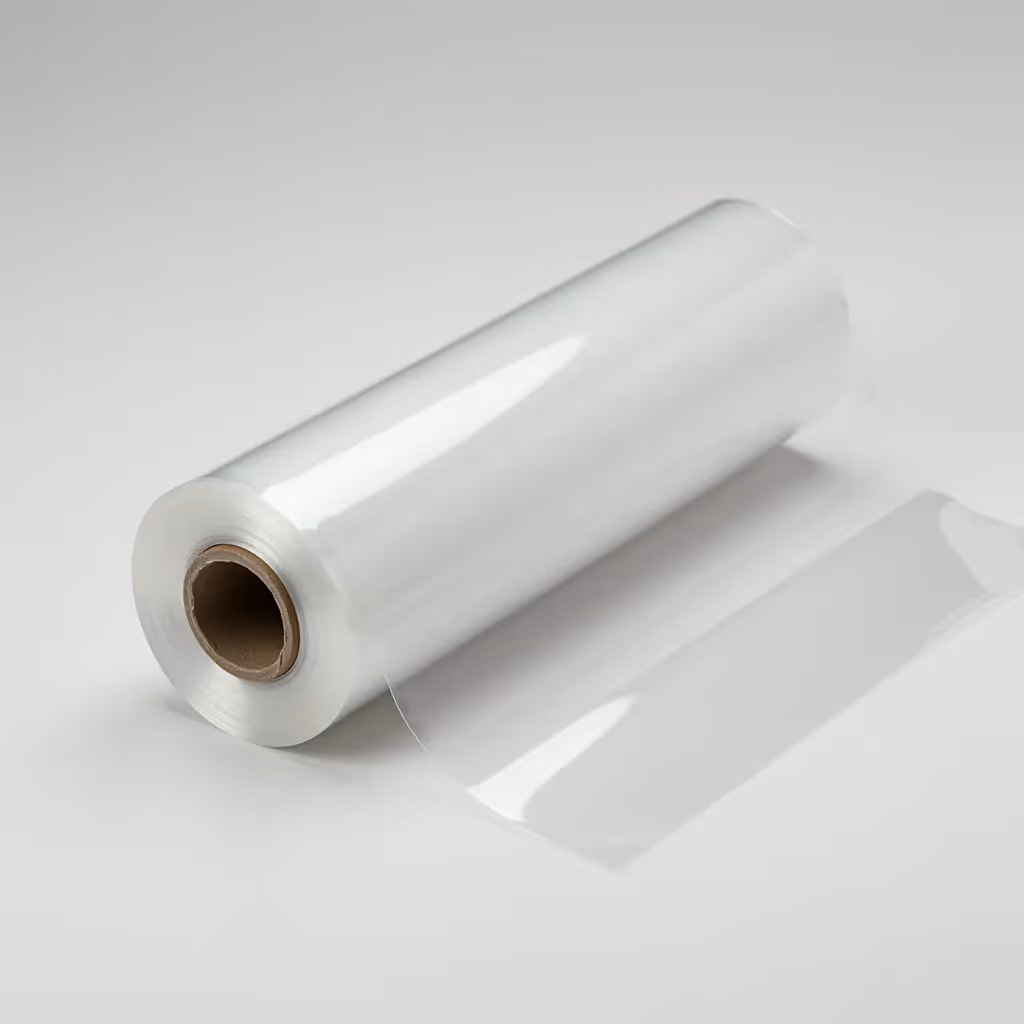

From the management of flexible and rigid films To the attention of the new sustainable materials: VKF thermoformers are designed to offer maximum technical versatility.
Thanks to a precise control of temperatures and times, we work on a wide range of thicknesses, aiming to guarantee hermetic welds and integrity of the pack.
Our technology is designed to accommodate the evolution of recyclable materials, subject to technical assessment to always ensure the required quality standard.
Oltre la tecnologia, la forma perfetta: scoprite come le nostre soluzioni trasformano ogni prodotto in un packaging sicuro, efficiente e dal design impeccabile.
.avif)
.avif)
Progettata per adattarsi alle specifiche esigenze del vostro mercato, questa tecnologia garantisce prestazioni eccellenti e massima protezione per diverse tipologie di prodotto.
Dalle soluzioni compatte ai sistemi ad alta produttività: esplora i modelli della gamma Veripack e trova la tecnologia perfetta per scalare il tuo business.
