THEevolution of compact thermoforming, designed for those who demand higher production rates and total flexibility, maintaining simple and intuitive control thanks to the7" touch screen interface.
With the VKF 30, you bring your line to Maximum efficiency with the guarantee of impeccable packages on different types of applications and materials. An advanced solution that combines industrial power and ease of management.
The VKF30 is the ideal choice for those who want to maximize productivity in compact spaces, taking advantage of intuitive technology and superior operational flexibility.
Total and immediate control of the working parameters through the touch screen, for simple and error-free management.
Designed to handle larger volumes of work than smaller models, maintaining extreme agility in format changes.
It guarantees impeccable welds and a constant vacuum, protecting the value of your product in every cycle
High quality stainless steel structure that allows quick sanitization, ensuring the highest standards of food safety.
Prestazioni misurabili e affidabilità costante.
Consulta i dati tecnici o scarica la scheda completa per scoprire la tecnologia che muove la tua produzione
Length|from 3450 to 4650 with extension of 600 Width|1190 Height (including light tower) |1705 (± 50) Load area|600 ÷ 1600 Load area height|950 (± 50) Total weight (vacuum pump excluded) |1000kg Control panel height|1450 (± 50) Lower standard film width|322 - 342 - 362 - 382 - 422 (+1) Max.|300 step Forming depth|80/120 Coil inner diameter|3” (70 ÷76) Lower reel diameter|300 Top reel diameter|250 Material|Aisi 304 stainless steel Control/Command System|"Touch 7" Control/Command Interface|HMI Simatic Siemens - Windows CE Power system (Drive) |Brushless motor System installed (pump excluded) |9.5 kW - 440 V - 50/60 Hz - 3P+N+GND IP/NEMA|IP 66/NEMA 4 protection level Pneumatic feed|750 Nl/min Electrical Components|Siemens, Toshiba, ABB, Sick, Phoenix Contact Mechanical Components|Rossi Gear Motors, Minimotor, Siemens, Iwis, SKF, Igus Pneumatic components | Festo, Parker Vacuum system components|OMAL, Valvaut, Maros Engineering, Trelleborg Production capacity|up to 10 cycles/min Applications|Welding, Skin, MAP, Vacuum Bottom film for rigid packaging|PET - PVC - PS Bottom film for flexible packaging|PA/PE Superior film for flexible packaging|PA/PE - PP - Paper - Alu - Tyvec - Skin
Scegli il metodo di conservazione ideale per valorizzare i tuoi standard produttivi e garantire unafreschezza duratura.
Map
Sealing

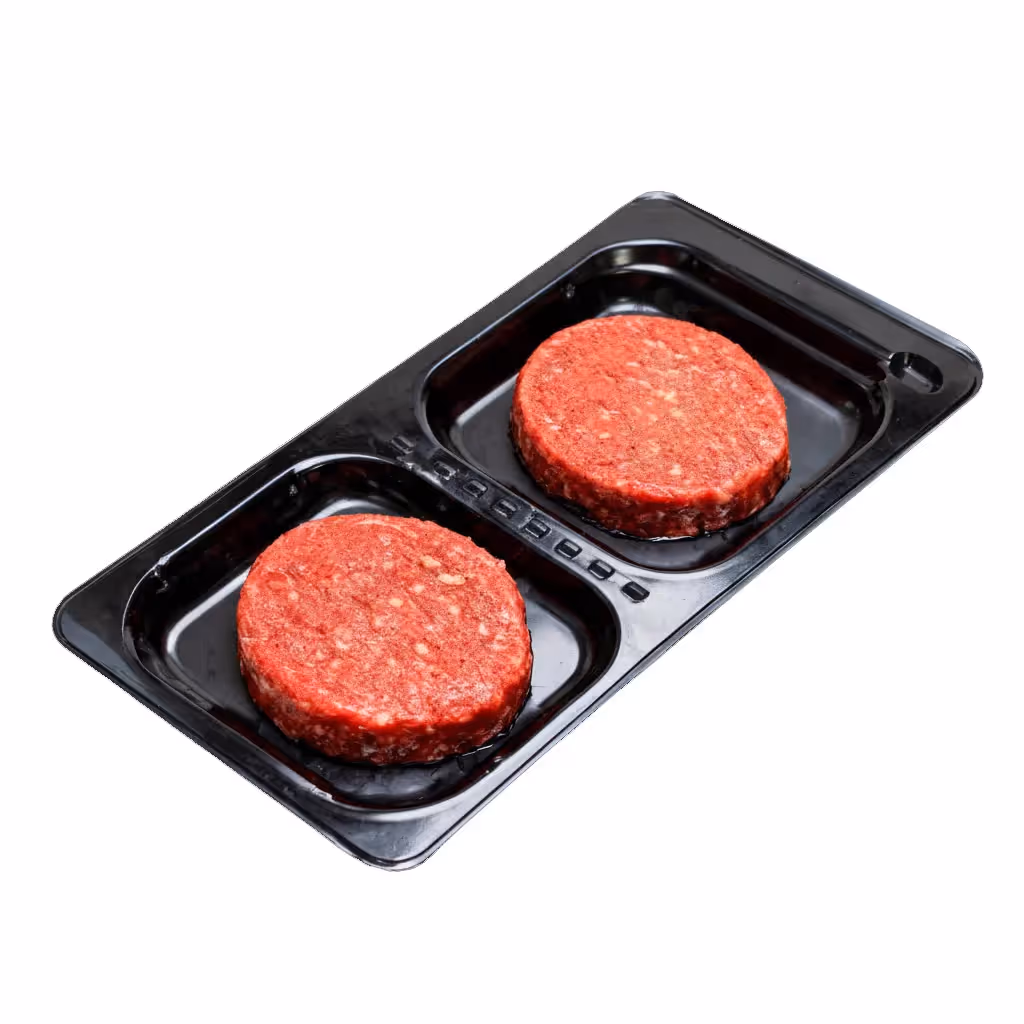

Skin

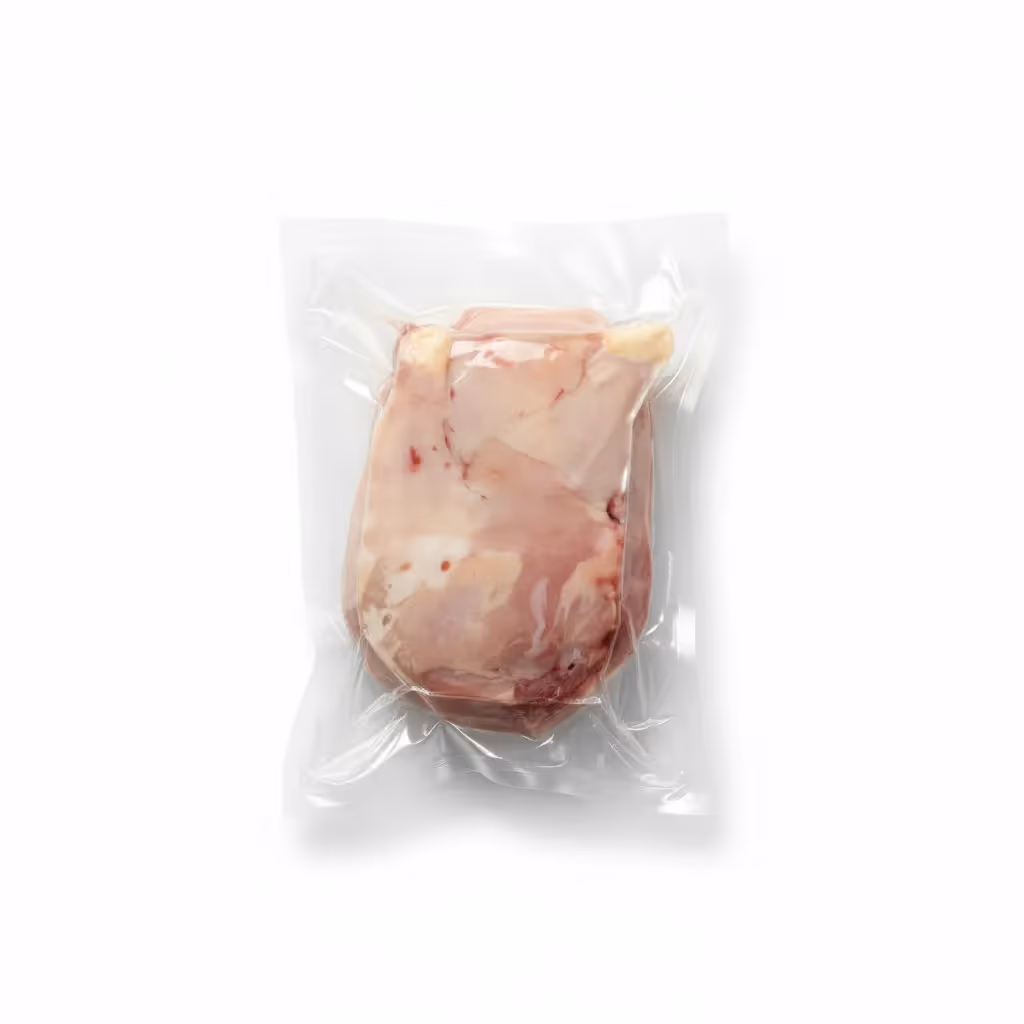

Vacuum
From the management of flexible and rigid films To the attention of the new sustainable materials: VKF thermoformers are designed to offer maximum technical versatility.
Thanks to a precise control of temperatures and times, we work on a wide range of thicknesses, aiming to guarantee hermetic welds and integrity of the pack.
Our technology is designed to accommodate the evolution of recyclable materials, subject to technical assessment to always ensure the required quality standard.
Oltre la tecnologia, la forma perfetta: scoprite come le nostre soluzioni trasformano ogni prodotto in un packaging sicuro, efficiente e dal design impeccabile.
.avif)
.avif)
Soluzioni di confezionamento certificate per garantire l'integrità totale dei presidi medico-chirurgici.
Scopri il caso studio
Progettata per adattarsi alle specifiche esigenze del vostro mercato, questa tecnologia garantisce prestazioni eccellenti e massima protezione per diverse tipologie di prodotto.
Dalle soluzioni compatte ai sistemi ad alta produttività: esplora i modelli della gamma Veripack e trova la tecnologia perfetta per scalare il tuo business.
Cerchi un partner affidabile per il tuo packaging?
Inizia da qui: descrivici il tuo progetto e costruiremo insieme la soluzione ideale per i tuoi prodotti
